Home Briaded Sleeve

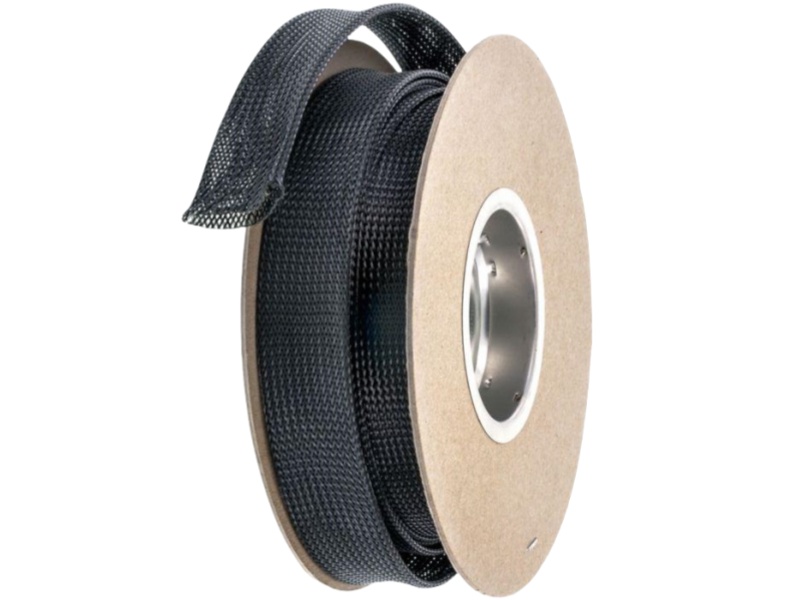

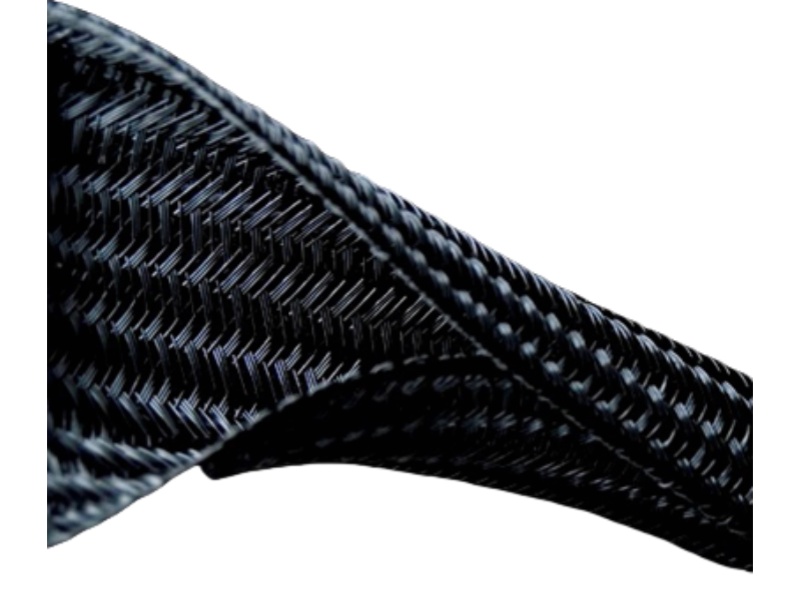

Self-closing PET Braided Sleeve

Self-closing PET braided wrap offers innovative solutions to the protection of breakout areas and also provides ease of removal when inspection or maintenance of cables is

required. The special open structure allows it can be installed after other necessary components , for example copper terminals and connectors .Strong resilience force keeps

the wire or cable not to be exposed ,meanwhile provides excellent abrasion resistance and flame resistance

And applies to Wire harness,automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection

Material :
Polyester
Approval :
UL, ROHS, REACH
Working Temperature :
-50℃~+150℃
Melting Point :
240℃±10℃
Flame Retardant Rating :
VW-1
Standard Color :
Black, Grey, Red, Green, Yellow…
Packing :
By Roll Or Cut By Pieces
Lead Time :
3 days

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Features

✔ Material: Polyester

✔ Approval: UL, ROHS, REACH

✔ Working Temperature: -50℃~+150℃

✔ Melting Point: 240℃±10℃

✔ Flame Retardant Rating: VW-1

✔ Features: Excellent Flexibility, Scalability and

✔ Resilience; Corrosion and Abrasion Resistance

✔ Color: Black, Grey, Red, Green, Yellow…

✔ Packing: By Roll Or Cut By Pieces

Testing Performance

Types	Performance Indicators	Typical Value
Breaking Strength	≧24N /mm	≧24N /mm
Elongation at break	≧25±5%	≧25±5%
Bendability at low temperature	- 70℃x 1 hrs., no cracks	pass
Combustibility	VW-1 incombustible, self-extinguishing	pass
Solution temperature	≧240℃	≧240℃
Corrosion resistance	Not corrodible	pass

Specification

P/N.:	SIZE	Max. Bundle Dia.	Packing
P/N.:	(mm)	(mm)	M/Roll
JD-SCW003	3	3.5	300
JD-SCW006	6	7	100
JD-SCW010	10	11	100
JD-SCW013	13	14	50
JD-SCW016	16	17	25
JD-SCW019	19	21	25
JD-SCW025	25	27	25
JD-SCW029	29	30	25
JD-SCW032	32	33	25
JD-SCW038	38	40	25
JD-SCW050	50	50	25

NOTES

• The size means the flat width of the sleeve, not the diameter.

• The size tolerance is big, because of the expansion feature.

• Special color and package can be customized by requirement.

• Detailed specification is available if needed.

FAQ

Q: If you have Rohs,UL, REACH certificate?

A:Yes,except these,if you also need other certificates,we also can help to apply.

Q: You are factory or trading company?

A: we are factory, Our Boss invest into 2 factory in total, One is Insulation Material Factory, One is Machinery Factory.

Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q: What is the payment term?

A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping.

Q: What about after service?

A: We can offer 12 months free warranty.

Q: What Products can you make?

A: We can make Insulation Materials such as Cold Shrink tube, Braided Sleeve, Dual wall Shrink Tube, Special Shrink Tube, Fiber Glass Sleeve, Medium&Heavy Wall Shrink Tube, Skidproof Shrink Tube, Thin Wall Shrink Tube, Vonnector Tube and etc, If you need any insulation materials, Pls just contact us. We will sending our detail specs and quote to you accordingly.

Q: How to reach our factory?

A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
