Home Briaded Sleeve

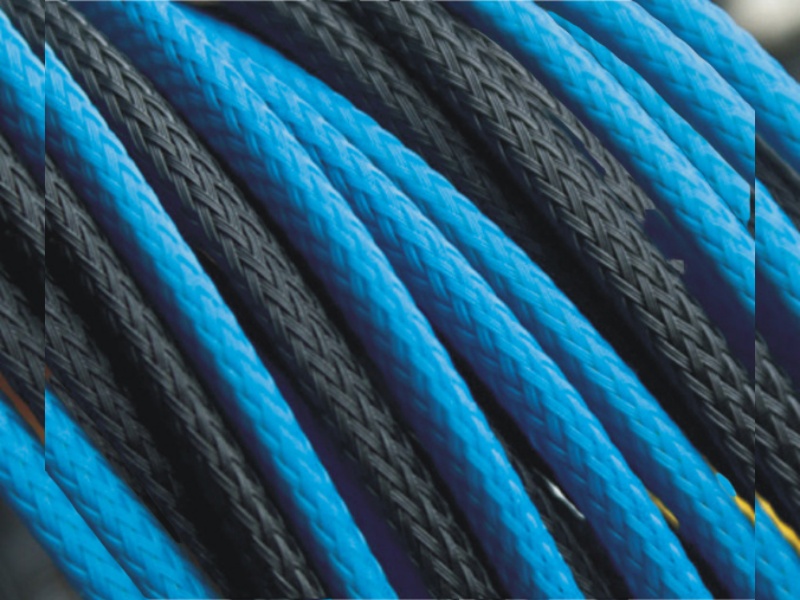

PPS Braided Sleeve

PPS Braided Sleeve is applied to Automotive, railways, aerospace, telecom and military where are required high characteristics for flame-retardancy and high temperature resistance.

Part Number :
G-PPS
Material :
PPS
Approval :
UL, ROHS, REACH
Working Temperature :
-70℃~+200℃
Melting Point :
285℃±10℃
Flame Retardant Rating :
UL94-V0
Standard Color :
Black, Grey
Packing :

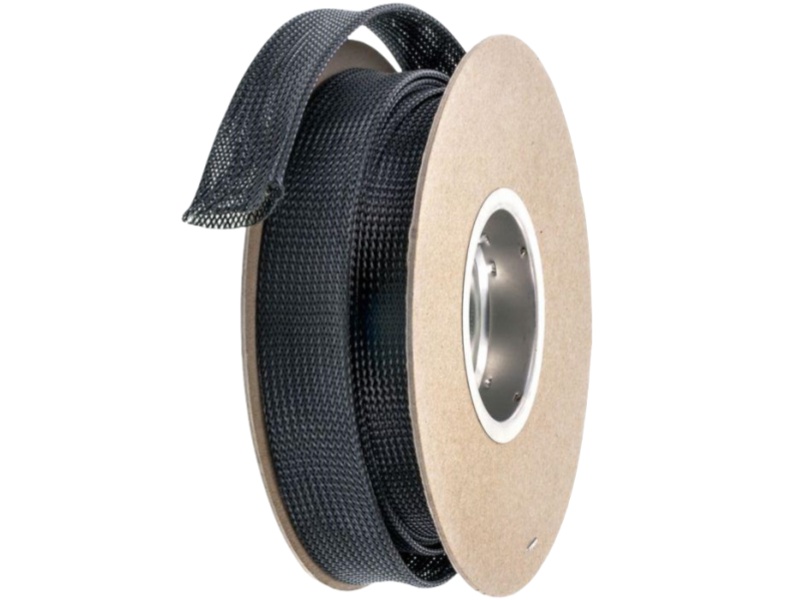

By Roll Or Cut By Pieces
Lead Time :
3 days

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Features

✔ Features: Excellent Flexibility, Scalability and Resilience; Corrosion and Abrasion Resistance; Acids, Solvents and Fuels Resistance.

✔ Part Number: G-PPS

✔ Material: PPS

✔ Approval: UL, ROHS, REACH

✔ Working Temperature: -70℃~+200℃

✔ Melting Point: 285℃±10℃

✔ Flame Retardant Rating: UL94-V0

✔ Standard Color: Black, Grey

✔ Packing: By Roll Or Cut By Pieces

Tesing Performance

Types	Performance Indicators	Typical Value
Breaking Strength	≧24N /mm	≧24N /mm
Elongation at break	≧25±5%	≧25±5%
Bendability at low temperature	- 70℃x 1 hrs., no cracks	pass
Combustibility	94-V0 incombustible, self-extinguishing	pass
Solution temperature	≧285℃	≧285℃
Corrosion resistance	Not corrodible	pass

Specification

P/N.:	SIZE		Expansion Range		Packing
P/N.:	(Inch)	(mm)	Min(mm)	Max(mm)	M/Roll
G-PPS-003	1/8”	3.2	2	6	500
G-PPS-006	1/4”	6.4	3	9	500
G-PPS-008	5/16”	7.9	5	14	350
G-PPS-010	3/8”	9.5	7	17	350
G-PPS-012	1/2”	12.7	8	24	300
G-PPS-016	5/8”	15.7	10	27	250
G-PPS-019	3/4”	19.1	14	30	200
G-PPS-025	1”	25	18	35	200
G-PPS-032	1-1/4”	32	20	50	150
G-PPS-038	1-1/2”	38	30	60	100
G-PPS-045	1-3/4”	45	35	75	100
G-PPS-050	2”	50	40	80	100
G-PPS-064	2-1/2”	64	45	105	100
G-PPS-076	3”	76	60	120	100

NOTES

• The size means the flat width of the sleeve, not the diameter.

• The size tolerance is big, because of the expansion feature.

• Special color and package can be customized by requirement.

• Detailed specification is available if needed.

FAQ

Q: If you have Rohs,UL, REACH certificate?

A:Yes,except these,if you also need other certificates,we also can help to apply.

Q: You are factory or trading company?

A: we are factory, Our Boss invest into 2 factory in total, One is Insulation Material Factory, One is Machinery Factory.

Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q: What is the payment term?

A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping.

Q: What about after service?

A: We can offer 12 months free warranty.

Q: What Products can you make?

A: We can make Insulation Materials such as Cold Shrink tube, Braided Sleeve, Dual wall Shrink Tube, Special Shrink Tube, Fiber Glass Sleeve, Medium&Heavy Wall Shrink Tube, Skidproof Shrink Tube, Thin Wall Shrink Tube, Vonnector Tube and etc, If you need any insulation materials, Pls just contact us. We will sending our detail specs and quote to you accordingly.

Q: How to reach our factory?

A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
