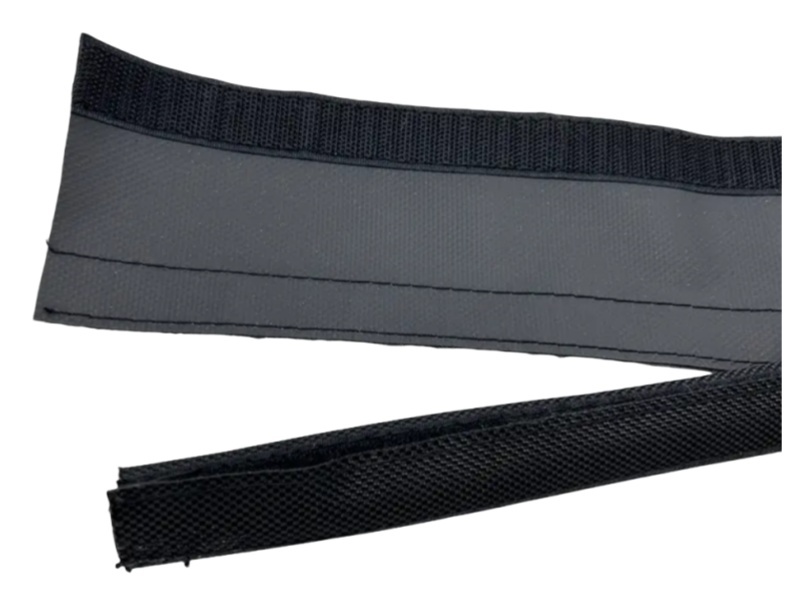

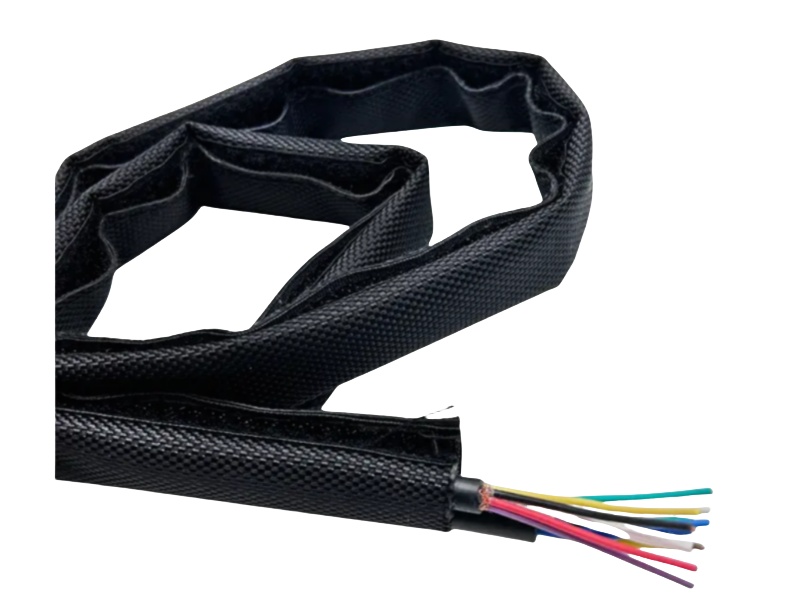

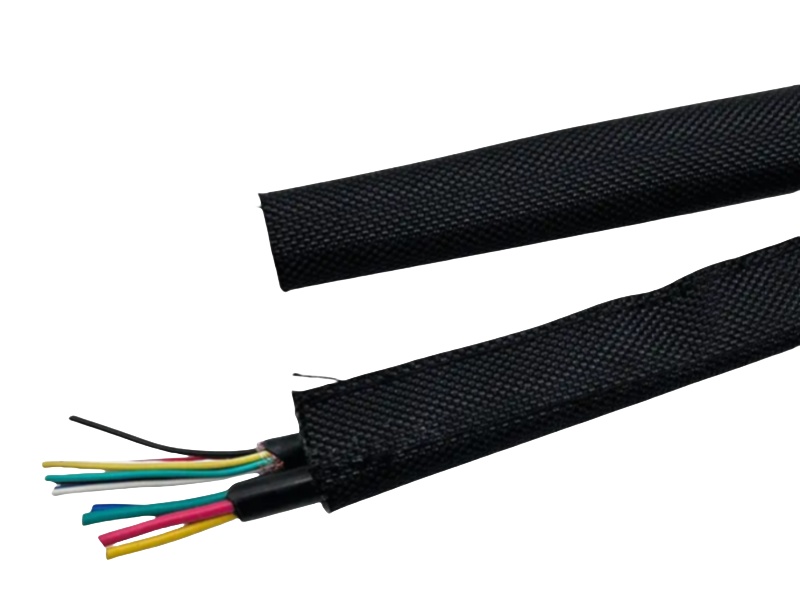

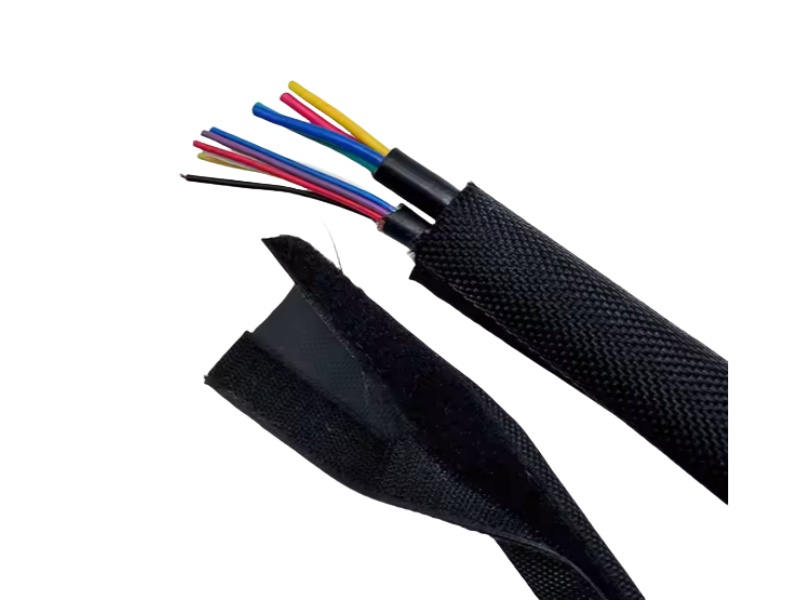

Velcro Multifilament Wrap Sleeve

Velcro Multifilament Wrap Sleeve is applied to industrial machines, electrical appliances, shipbuilding, railway vehicles, aerospace industry and automotive sector.

Material :
Polyester&Velcro(Polyamide)
Approval :
UL, ROHS, REACH
Working Temperature :
50℃~+150℃
Melting Point :
230℃±5℃
Flame Retardant Rating :
VW-1
Standard Color :
Black, White, Grey
Packing :
By Roll Or Cut By Pieces
Lead Time :
3 days

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Features

✔ Material: Polyester&Velcro(Polyamide)

✔ Approval: UL, ROHS, REACH

✔ Working Temperature: -50℃~+150℃

✔ Melting Point: 230℃±5℃

✔ Flame Retardant Rating: VW-1

✔ Features: Excellent Flexibility, Scalability and

Resilience; Corrosion and Abrasion Resistance Acids, Solvents and Fuels Resistance

✔ Standard Color: Black, White, Grey

✔ Packing: By Roll Or Cut By Pieces

Testing Performance

Types	Performance Indicators	Typical Value
Breaking Strength	≧24N /mm	≧24N /mm
Elongation at break	≧25±5%	≧25±5%
Bendability at low temperature	- 70℃x 1 hrs., no cracks	pass
Combustibility	VW-1 incombustible, self-extinguishing	pass
Solution temperature	≧230℃	≧230℃
Corrosion resistance	Not corrodible	pass

Specification

P/N.:	SIZE		Packing
P/N.:	(Inch)	(mm)	M/Roll
JD-PVM-020	0.79”	20	50
JD-PVM-025	0.98”	25	50
JD-PVM-030	1.18”	30	50
JD-PVM-035	1.38”	35	50
JD-PVM-040	1.58”	40	25
JD-PVM-045	1.78”	45	25
JD-PVM-050	1.97”	50	25

FAQ

Q: If you have Rohs,UL, REACH certificate?

A:Yes,except these,if you also need other certificates,we also can help to apply.

Q: You are factory or trading company?

A: we are factory, Our Boss invest into 2 factory in total, One is Insulation Material Factory, One is Machinery Factory.

Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q: What is the payment term?

A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping.

Q: What about after service?

A: We can offer 12 months free warranty.

Q: What Products can you make?

A: We can make Insulation Materials such as Cold Shrink tube, Braided Sleeve, Dual wall Shrink Tube, Special Shrink Tube, Fiber Glass Sleeve, Medium&Heavy Wall Shrink Tube, Skidproof Shrink Tube, Thin Wall Shrink Tube, Vonnector Tube and etc, If you need any insulation materials, Pls just contact us. We will sending our detail specs and quote to you accordingly.

Q: How to reach our factory?

A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
