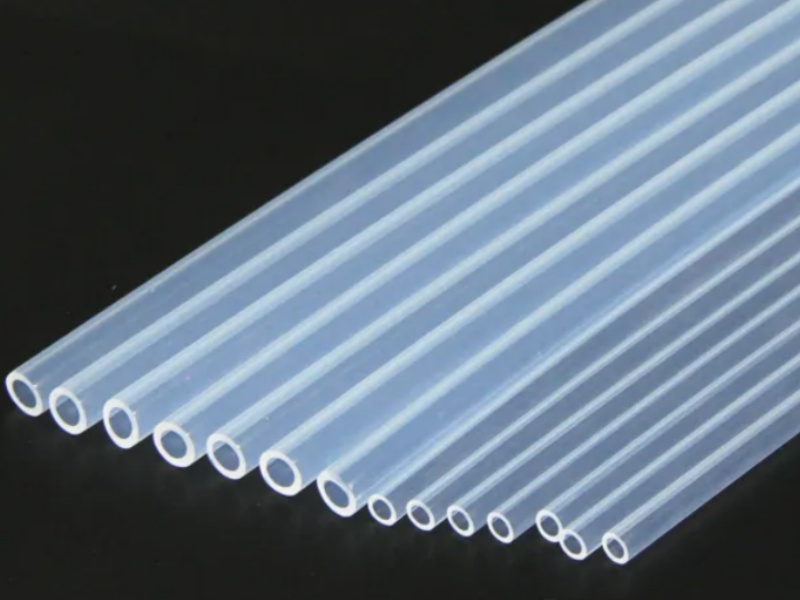

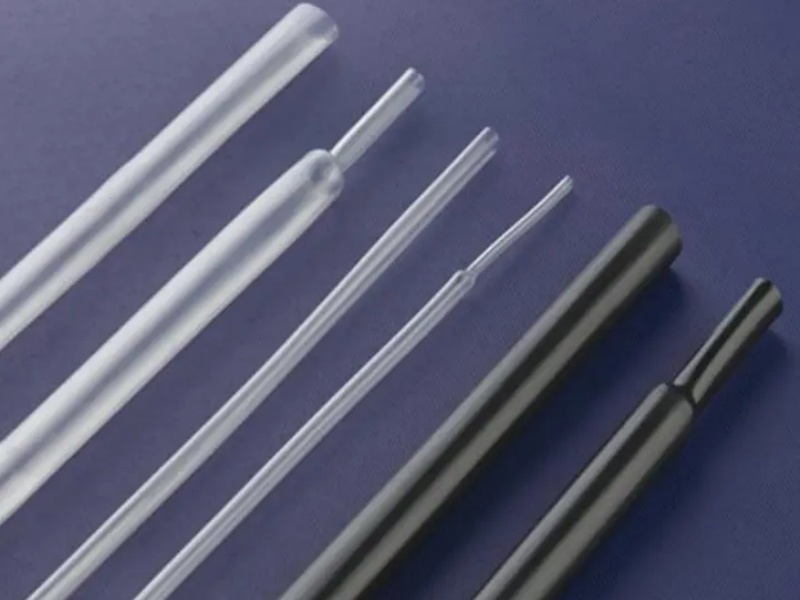

200°C Temperature Resistant FEP Heat Shrink Tube with excellent 200℃ high temperature performance, chemical resistance, high insulation anc excellent mechanical properties. FEP has excellent abrasion resistance and excellent clarity. Designed to provide insulation and mechanical protection in severe chemical and thermal environments. Widely use in electronic, aerospace, military and communication fields.
Part Number :
G-FEPMaterial :
Fluorinated ethylene propyleneApproval :
RoHS and REACH compliant,SAE AMS-DTL-23053/8Working Temperature :
-65℃~+200℃Flame Retardant Rating :
UL224 600V WW-1Standard Color :
ClearPacking :
Paper spool plate and cartonLead Time :
3 daysMini. Shrink Temp :
195℃Mini. Fully Shrink Temp :
210℃
✔ Part Number: G-FEP
✔ Material: Fluorinated ethylene propylene
✔ Working Temp.: -65℃~+200℃
✔ Mini. shrink temp.: 195℃
✔ Mini. fully shrink temp.: 210℃
✔ Flame Retardant Rating: UL224 600V WW-1
✔ Approval: SAE AMS-DTL-23053/8
✔ Standard Color: Clear
✔ Packing: Paper spool plate and carton
✔ Shrink ratio 1.25:1
✔ Excellent clarity
✔ Excellent flammability
✔ High temperature resistant to 200℃
✔ Superior physical and chemical properties
✔ RoHS and REACH compliant
Testing Performance
|
Property |
Requirement |
Test method |
Typical data |
|
Longitudinal shrinkage |
≤5% |
ASTM D 2671 |
≤3% |
|
Tensile strength |
13.8 MPa min. |
ASTM D 638 |
≥19 MPa |
|
Elongation at break |
150% min. |
ASTM D 638 |
≥250% |
|
Tensile strength after ageing(232℃,168hrs) |
9.7MPa min. |
ASTM D 638 |
≥14 MPa |
|
Elongation after ageing (200℃,168hrs) |
100% min. |
ASTM D 638 |
≥250% |
|
Heat shock (260℃, 4hrs) |
No crack |
ASTM D 2671 |
No crack |
|
Low-temperature Flexibility (-55℃. 4hrs) |
No crack |
ASTM D 2671 |
No crack |
|
Dielectric voltage withstand |
2500V, 60sec, no breakdown |
ASTM D 2671 |
No breakdown |
|
Volume resistivity |
10¹⁵Ω·cm min. |
ASTM D 876 |
≥10¹⁵Ω·cm |
|
Corrosion |
No corrosion |
ASTM D 2671 |
No corrosion |
|
Flammability |
VW-1 |
UL224 |
pass |
|
Size |
As supplied (mm) |
After recovered (mm) |
Standard packing (m/pc, m/roll) |
|||
|
PN# |
mm |
(mini.) Inside Dia. |
(max.) Inside Dia. |
Wall thickness |
||
|
G-FEP |
2.5 |
2.5 |
2.0 |
0.20±0.05 |
100 |
|
|
G-FEP |
3.5 |
3.5 |
2.8 |
0.20±0.05 |
100 |
|
|
G-FEP |
4.7 |
4.7 |
3.8 |
0.20±0.05 |
1 |
|
|
G-FEP |
5.5 |
5.5 |
4.5 |
0.20±0.05 |
1 |
|
|
G-FEP |
7.0 |
7.0 |
5.6 |
0.20±0.05 |
1 |
|
|
G-FEP |
9.0 |
9.0 |
7.5 |
0.20±0.05 |
1 |
|
|
G-FEP |
11.5 |
11.5 |
9.3 |
0.30±0.05 |
1 |
|
|
G-FEP |
14.5 |
14.5 |
11.7 |
0.35±0.05 |
1 |
|
|
G-FEP |
19 |
19 |
15.3 |
0.35±0.05 |
1 |
|
|
G-FEP |
24 |
24 |
19.3 |
0.40±0.10 |
1 |
|
|
G-FEP |
28 |
28 |
22.5 |
0.40±0.10 |
1 |
|
|
G-FEP |
35 |
35 |
28.1 |
0.45±0.10 |
1 |
|
NOTES
• Special size can be customized by requirement.
• Special color and package can be customized by requirement.
• Detailed specification is available if needed.
