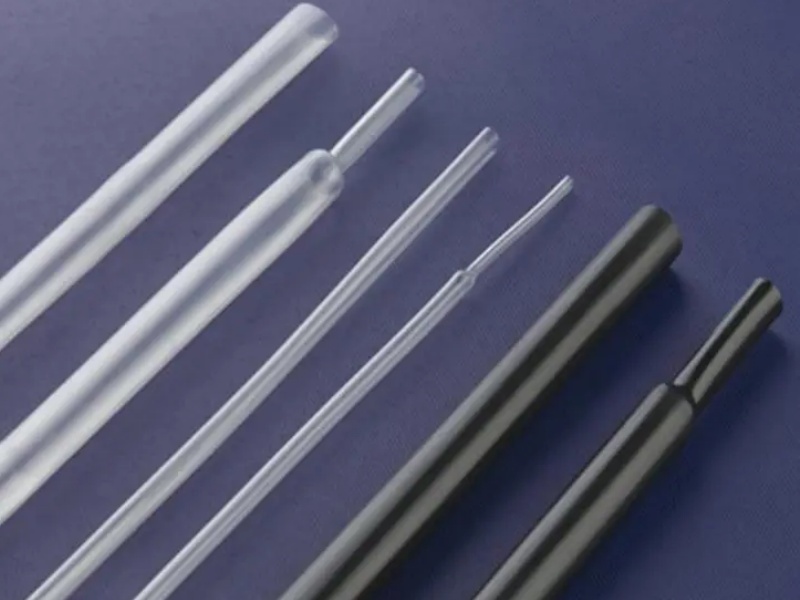

150°C Temperature Resistant KYNAR Tube is made of special irradiation cross-linked fluoropolymer PVDF with outstanding chemical and solvent resistance and high temperature performance. It is tough, semi-rigid, very thin wall especially suitable for applications requiring high-temperature performance, outstanding abrasion resistance and cut-through resistance, or superior chemical and solvent properties. It is also used for insulation and strain relief of soldered joints, identification and inspection of covered components.
Part Number :
G-KY150Material :
Fluoropolymer PVDFApproval :
SAE AMS-DTL-23053/8, RoHS and REACH compliantWorking Temperature :
-55℃~+150℃Flame Retardant Rating :
UL224 600V WW-1Standard Color :
Clear and BlackPacking :
Paper spool plate and cartonLead Time :
3 daysMini. Shrink Temp :
125℃Mini. Fully Shrink Temp :
150℃
✔ Part Number: G-KY150
✔ Material: Fluoropolymer PVDF
✔ Working Temp.: -55℃~+150℃
✔ Mini. shrink temp.: 125℃
✔ Mini. fully shrink temp.: 150℃
✔ Flame Retardant Rating:UL224 600V WW-1
✔ Approval: SAE AMS-DTL-23053/8

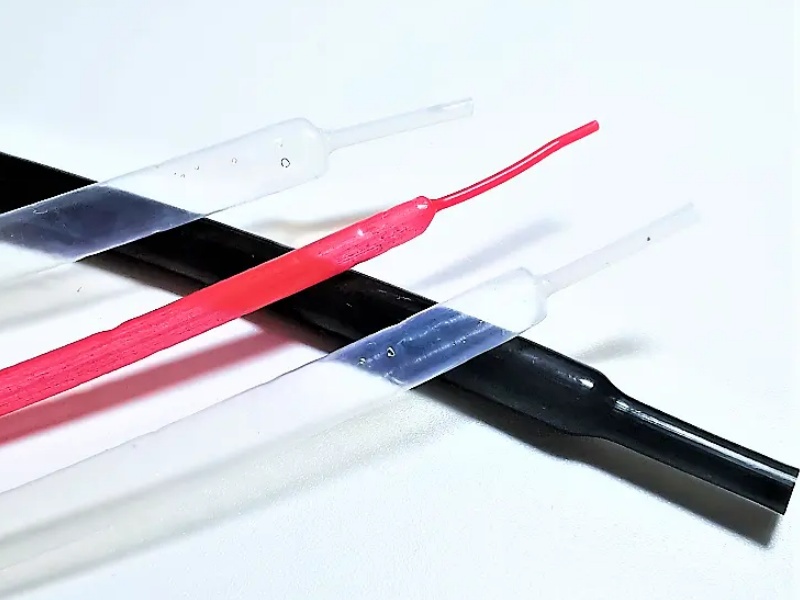

✔ Standard Color: Clear and Black

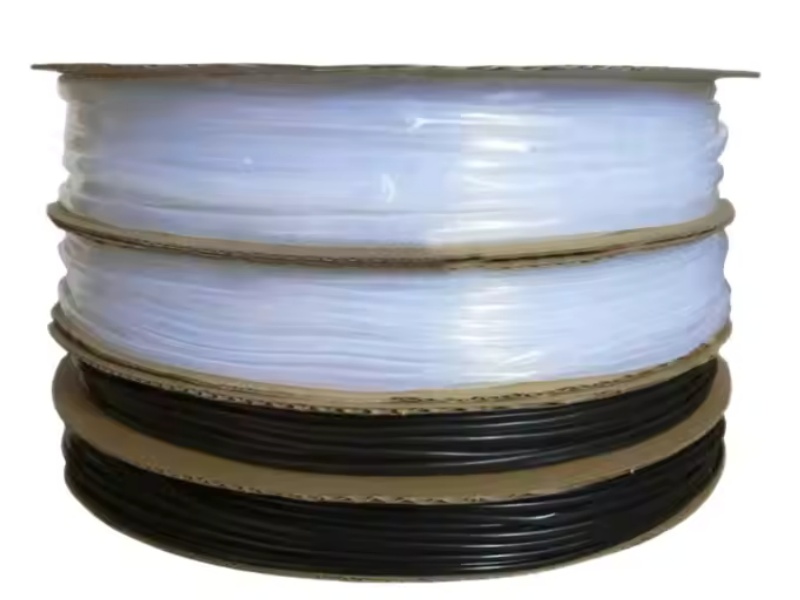

✔ Packing: Paper spool plate and carton
✔ Shrink ratio 2:1
✔ Highly flame-resistant
✔ Flexible, high-temperature resistant
✔ Clear product has good clarity and clarity stability
✔ Good toughness, excellent abration resistance,physical and chemical properties
✔ RoHS and REACH compliant
Testing Performance
|
Property |
Requirement |
Test method |
Typical data |
|
Longitudinal shrinkage |
≤10% |
ASTM D 2671 |
≤5% |
|
Tensile strength |
17.3 MPa min. |
ASTM D 638 |
≥35 MPa |
|
Elongation at break |
150% min. |
ASTM D 638 |
≥300% |
|
Elongation after ageing (250℃,168hrs) |
100% min. |
ASTM D 638 |
≥200% |
|
Heat shock (275℃, 4hrs) |
No crack |
ASTM D 2671 |
No crack |
|
Low-temperature Flexibility (-55℃. 4hrs) |
No crack |
ASTM D 2671 |
No crack |
|
Dielectric voltage withstand |
2500V, 60sec, no breakdown |
ASTM D 2671 |
No breakdown |
|
Volume resistivity |
10¹¹Ω·cm min. |
ASTM D 876 |
≥10¹¹Ω·cm |
|
Corrosion |
No corrosion |
ASTM D 2671 |
No corrosion |
|
Flammability |
VW-1 |
UL224 |
pass |
|
Size |
As supplied (mm) |
After recovered (mm) |
Standard packing (m/pc, m/roll) |
|||
|
Inch |
mm |
(mini.) Inside Dia. |
(max.) Inside Dia. |
Wall thickness |
||
|
3/64 |
1.2 |
1.2 |
0.6 |
0.25±0.05 |
1.2/200 |
|
|
1/16 |
1.6 |
1.6 |
0.8 |
0.25±0.05 |
1.2/200 |
|
|
3/32 |
2.4 |
2.4 |
1.2 |
0.25±0.05 |
1.2/200 |
|
|
1/8 |
3.2 |
3.2 |
1.6 |
0.25±0.05 |
1.2/200 |
|
|
3/16 |
4.8 |
4.8 |
2.4 |
0.25±0.05 |
1.2/100 |
|
|
1/4 |
6.4 |
6.4 |
3.2 |
0.30±0.08 |
1.2/100 |
|
|
3/8 |
9.5 |
9.5 |
4.8 |
0.30±0.08 |
1.2/100 |
|
|
1/2 |
12.7 |
12.7 |
6.4 |
0.30±0.08 |
1.2/100 |
|
|
3/4 |
19.1 |
19.1 |
9.5 |
0.43±0.08 |
1.2/50 |
|
|
1 |
25.4 |
25.4 |
12.7 |
0.48±0.08 |
1.2/50 |
|
|
1-1/2 |
38.1 |
38.1 |
19.1 |
0.51±0.08 |
1.2 |
|
|
2 |
50.8 |
50.8 |
25.4 |
0.58±0.08 |
1.2 |
|
NOTES
• Special size can be customized by requirement.
• Special color and package can be customized by requirement.
• Detailed specification is available if needed.
