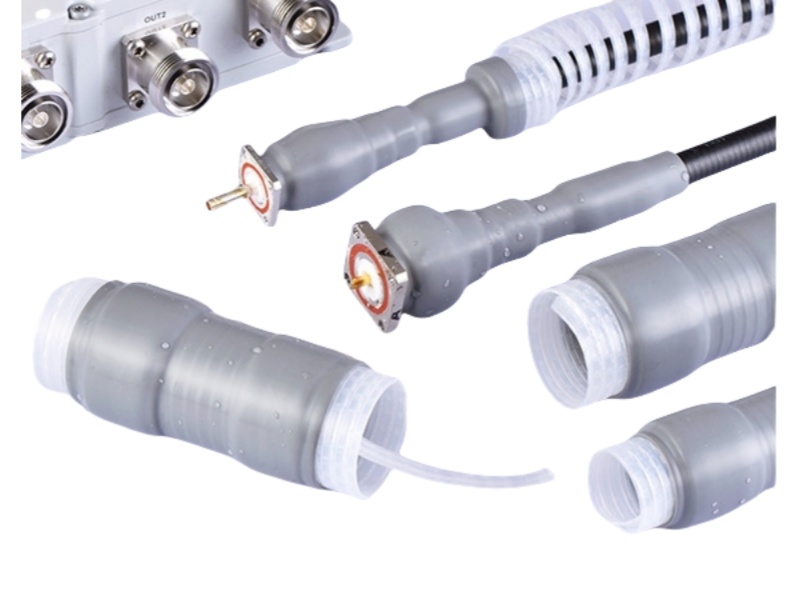

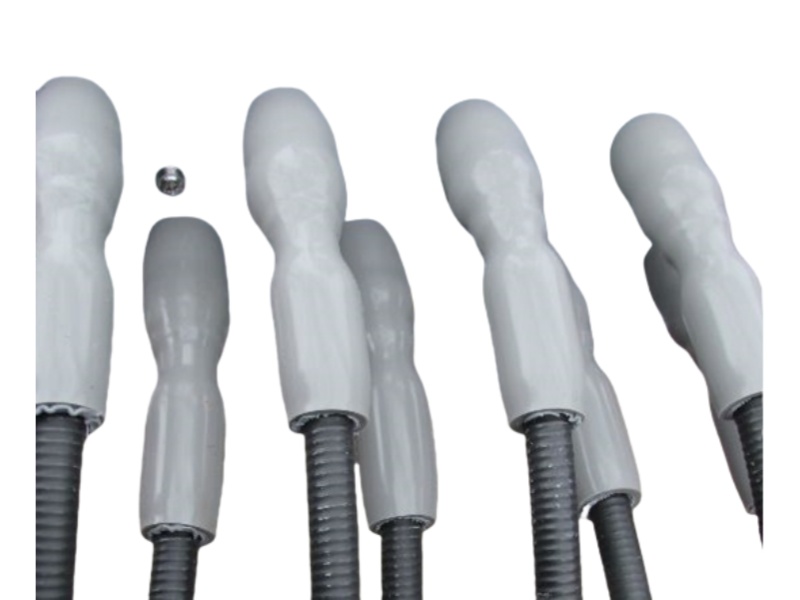

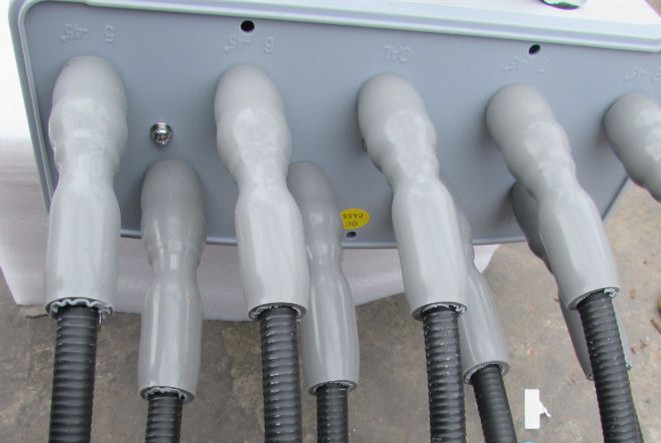

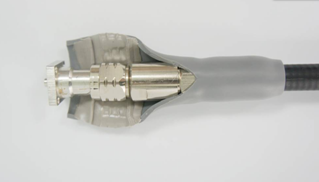

Silicone Rubber Cold Shrink Tube With Mastic Inside is applied for insulation And Sealing For cable splices
Part Number :
G-CSTMMaterial :
Silicone rubber, MasticApproval :
UL, ROHS, REACHWorking Temperature :
-40℃~+200℃Flame Retardant Rating :
UL94-V0Standard Color :
Black, Grey, Red, Green, Yellow…Packing :
PE Bag and cartonLead Time :
3 daysShore A Hardness :
35-45A
✔ Part Number: G-CSTM
✔ Material: Silicone rubber, Mastic
✔ Approval: UL, ROHS, REACH
✔ Working Temperature: -40℃~+200℃
✔ Shore A hardness: 35-45A
✔ Flame Retardant Rating: UL94-V0
✔ Standard Color: Black, Grey, Red, Green, Yellow…
✔ Packing: PE Bag and carton
✔ Simple installation, no heat requires.
✔ Seals tight, retains its resiliency and pressure even after long time ageing and exposure.
✔ Waterproof for outdoor use.
Testing Performance
| Technical Data | Typical Value | Test Standard |
| Tensile Strength / MPa | 10.3 | ASTM D 421 |
| Elongation at break /% | 900% | ASTM D 412 |
| Shore A hardness | 35-45 | GB/T 531.1-2008 |
| Tear Strength N/MM | 48.6 | ASTM D 624 |
| Volume Resistivity /Ω.m | 1.3X1017 | ASTM D 4325 |
| Sealing | IP67 | IEC60529 |
| Dielectric strength | 23kv/mm | ASTM D 4325 |
| Ozone Resistant | Passed | ASTM G154-06 |
| UV-resistance | Passed | ASTM G154-06 |
| Low temp. Resistant | -40℃ | ISO 812 |
| Flame retardant | V-0 | UL-94 |
|
As supplied(mm) |
Application Range(mm) |
After recovered(mm) |
|||
|
P/N |
MM |
Min |
Max |
Length |
Wall thickness |
|
G-CSTM-18/5 |
⏀18 |
5.7 |
13.0 |
50~200 |
2.5 |
|
G-CSTM-25/7 |
⏀25 |
7.3 |
21.0 |
50~300 |
2.5 |
|
G-CSTM-28/9 |
⏀28 |
9.0 |
23.0 |
50~300 |
2.5 |
|
G-CSTM-30/9 |
⏀30 |
9.1 |
25.0 |
50~400 |
2.5 |
|
G-CSTM-35/10 |
⏀35 |
10.4 |
30.1 |
50~400 |
2.5 |
|
G-CSTM-40/11 |
⏀40 |
11.7 |
35.1 |
50~400 |
3.0 |
|
G-CSTM-45/12 |
⏀45 |
12.7 |
40.0 |
50~450 |
3.0 |
|
G-CSTM-50/16 |
⏀50 |
16.0 |
45.0 |
50~450 |
3.0 |
|
G-CSTM-55/18 |
⏀55 |
18.2 |
49.2 |
90~800 |
3.0 |
|
G-CSTM-60/18 |
⏀60 |
18.2 |
53.0 |
90~800 |
3.0 |
|
G-CSTM-65/22 |
⏀65 |
22.4 |
58.0 |
90~800 |
3.0 |
|
G-CSTM-70/22 |
⏀70 |
22.4 |
63.6 |
90~800 |
3.0 |
|
G-CSTM-75/28 |
⏀75 |
28.0 |
66.0 |
90~800 |
3.0 |
|
G-CSTM-80/30 |
⏀80 |
30.0 |
72.0 |
90~800 |
3.0 |
|
G-CSTM-90/33 |
⏀90 |
33.0 |
82.0 |
90~800 |
3.0 |
|
G-CSTM-100/39 |
⏀100 |
39.0 |
92.0 |
90~800 |
3.0 |
NOTES:
• Special size can be customized by requirement.
• Special color and package can be customized by requirement.
• Detailed specification is available if needed.
FAQ
Q: If you have Rohs,UL, REACH certificate?
A:Yes,except these,if you also need other certificates,we also can help to apply.
Q: You are factory or trading company?
A: we are factory, Our Boss invest into 2 factory in total, One is Insulation Material Factory, One is Machinery Factory.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping.
Q: What about after service?
A: We can offer 12 months free warranty.
Q: What Products can you make?
A: We can make Insulation Materials such as Cold Shrink tube, Braided Sleeve, Dual wall Shrink Tube, Special Shrink Tube, Fiber Glass Sleeve, Medium&Heavy Wall Shrink Tube, Skidproof Shrink Tube, Thin Wall Shrink Tube, Vonnector Tube and etc, If you need any insulation materials, Pls just contact us. We will sending our detail specs and quote to you accordingly.
Q: How to reach our factory?
A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
