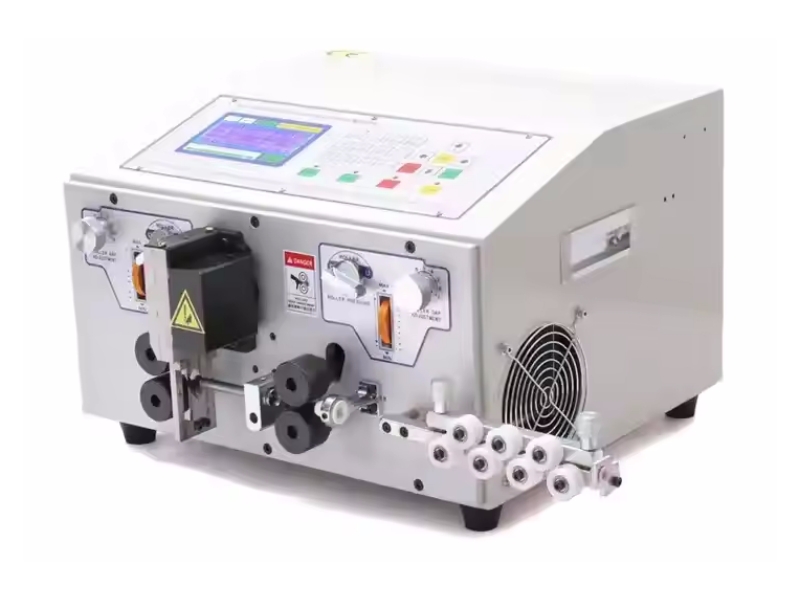

Electric Wire Cutting Machine/cable cutting and stripping machine
The Electric Wire Cutting Machine 1mm-99999.99mm Adjustable Cutting Length /Computer Wire Cutting and Stripping Machine is a versatile and efficient tool designed for processing various wires, including electronic, silicone, and Teflon wires. With a compact design (420×380×290mm) and a high-speed motor (120W-220W), it ensures precise cutting and stripping lengths from 1mm to 99999.99mm. Its four-wheel drive system, imported high-speed steel blades, and silent hybrid stepping mechanism provide stable performance, making it an ideal choice for high-volume wire processing tasks.
Order MOQ :
1 SETPayment term :
T/T, L/CProduct Origin :
Dongguan, ChinaColor option :
Black whiteShipping Term :
FOB, CIFLead Time :
7 days
Fully automatic mobile tool holder
Four wheels drive at the same time, the gear cutting knife cuts neatly, and the wire stripping quality is stable.
LED dual language display
Chinese and English display screen, smart buttons for easy setting and operation.
Pure copper high-speed motor
Pure copper motor has strong core power and is more stable.
Seven-wheel straightener
Straighter and more precise wires improve work quality
Specification
|
Name
|
Electronic Wire Stripping Machine |
| Dimensions(mm) | 420*380*290mm |
| Power supply | 175V-260V50/60HZ |
| Power | 120W-220W |
| Weight | 20KG |
| Cutting length | 1mm-99999.99mm |
| Conductor cross-section | 0.2-2.5mm² |
| Cutting length tolerance |
0.002 * L
(L = cutting length)
|
| Catheter diameter | Below 4mm |
| Tool material | Imported high speed steel |
| Drive mode | four wheels |
| Stripping speed |
3000-7000 items/H
|
| Pulse equivalent | Tool holder accuracy |
| Incoming and outgoing line |
accuracy No error within 5 meters line 0.03mm per step Silent hybrid stepping
|

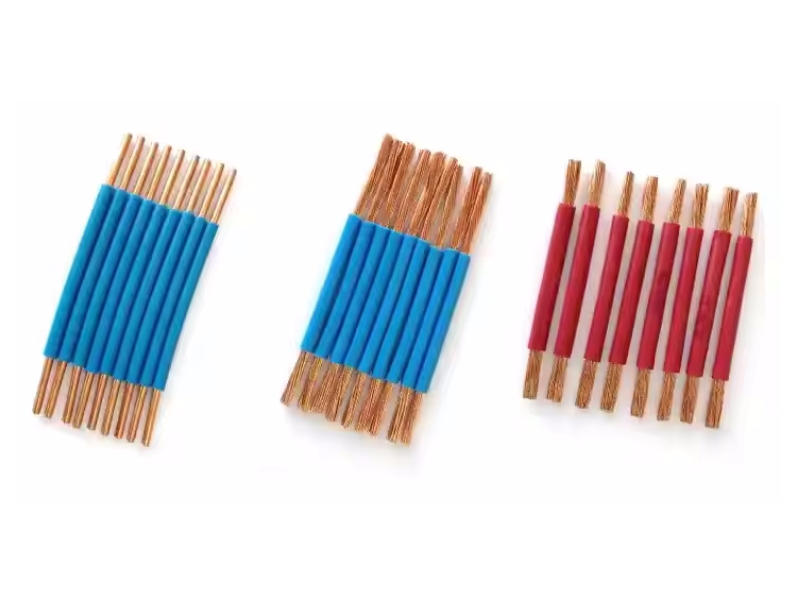

Suitable for stripping and cutting all kinds of wires:
Electronic Wires
Silicone Wires
Teflon Wires
Glass Woven Cotton Wires
Isolation Wires
Coaxial Wires
Sheathed Wires

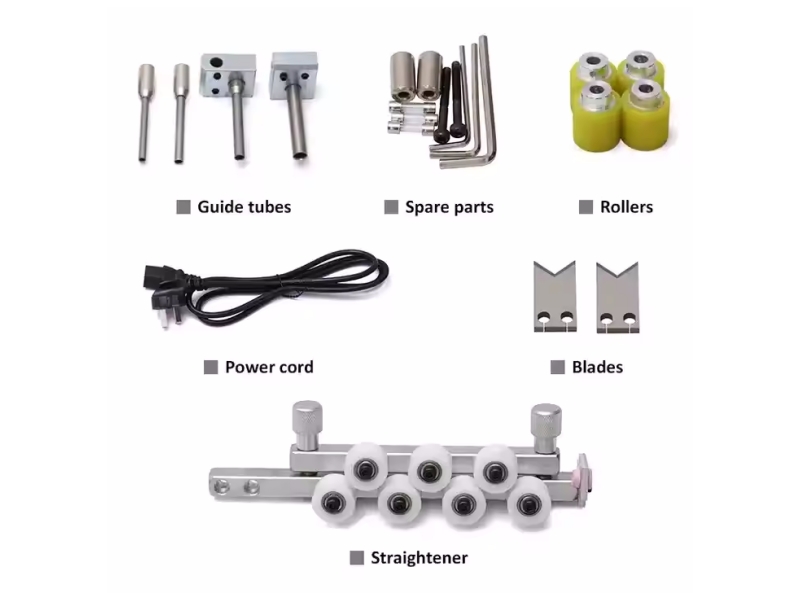

✔ Guide Tubes
✔ Spare Parts
✔ Rollers
✔ Power Cord
✔ Blades
✔ Straightener
FAQ
Q: If you will send engineercoming to our factory to install and make training for worker?
A:Yes, every set of machine, we will send professional engineer to your factory and help installation and making training for you.
Q: If you have CE,SGS,ISO certificate?
A:Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear - out spare parts?
A: Yes, we provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: The voltage, if you can design Machines according to our request?
A: Yes. We can exactly customised the machine according to Customers' request specially.
Q: You are factory or trading company?
A: we are factory, we are engaged in this business for 20 years, we also have our oversea sales team for better service for our customers.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: What about after service?
A: We can offer 12 months free warranty since the machinery arrived at your factory. We also offer spare parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: What Machines can you make? Why we did not see all machine pictures?
A: We can make machines for all kinds of Wire and cables making machines, we can help to settle down whole production line for new factories. Because Machines is not small product and we did not have photos for all of our products which already settled down in our customers' workshop.
ISo if you are looking for any machines related to making wires and cables, just contact us. We will sending our detail specs and quote to you accordingly.
Q: How to reach our factory?
A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
