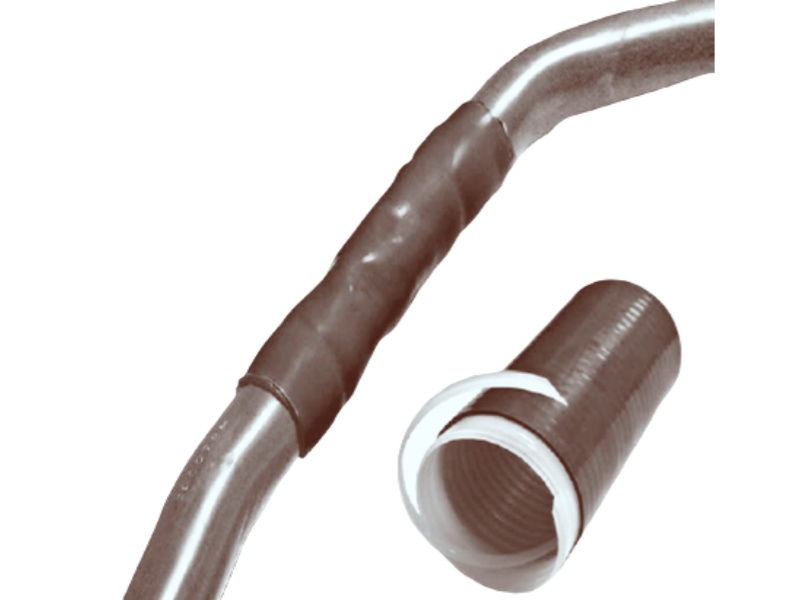

EPDM Cold Shrink Tube is an open-ended cold shrink ethylene propylene diene monomer (EPDM) rubber sleeve, which is factory pre-expanded and assembled onto a removable core. The core is removed when the tube is position for installation over an in-line connection or termination lug. It provides a water proofing tight for terminations and joints.
Part Number :
G-ECSTMaterial :
EPDMApproval :
UL, ROHS, REACHWorking Temperature :
-40℃~+200℃Flame Retardant Rating :
UL94-V0Standard Color :
BlackPacking :
PE Bag and cartonLead Time :
3 daysShore A Hardness :
37A
✔ Part Number: G-ECST
✔ Material: EPDM
✔ Approval: UL, ROHS, REACH
✔ Working Temperature: -40℃~+200℃
✔ Shore A hardness: 37A
✔ Flame Retardant Rating: UL94-V0
✔ Standard Color: Black
✔ Packing: PE Bag and carton
✔ High elastic EPDM rubber tube structure.
✔ Good puncture resistant, abrasion resistance, acid and alkali resistance.
✔ 20 years long lifetime during operation.

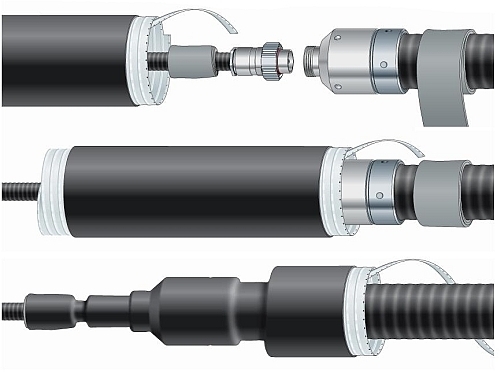

✔ Easy to install, only two steps (Cover, pull).
✔ Fast installation, only 15-30 seconds needed to seal one connection.
✔ No limitation of spare space, especially design for narrow space.
✔ Easy to uninstall, only need knife to cut tube open.
✔ No skill required by engineers, uniform quality after installation, stable and good sealing and Weatherproofing performance.
✔ Much time and labor cost saving.
✔ Good operating capability under hash environmental condition, salt-mist situation, heavy windy weather, and anti-UV, anti-ozone.
Testing performance
| Technical Data | Typical Value | Test Standard |
| Waterproof class | Pass, IPX7 |
IEC 60529:1989+A1:1999+A2:2013； 1 meter depth in water, duration: 4 hours |
| Shore A hardness | 37A | ASTM D2240-15 |
| Tensile Strength | ≥ 9.6MPa | ASTM D412-15a Method A |
| Elongation | ≥ 650% | ASTM D412-15a Method A |
| Tear Strength | ≥ 27 KN/m | ASTM D624-00(2012) |
| Dielectric strength | ≥12 KV/mm | ASTM D149-09(2013) Method A |
| Material Environmental protection | RoHS | IEC 62321 |
NOTES:
• Special size can be customized by requirement.
• Detailed specification is available if needed.
Specification
| P/N | Application Range (mm) | After recovered length(mm) | Color |
| G-ECST-20/8 | 8~15 | 152 | Black |
| G-ECST-25/10 | 10~20 | 203~280 | Black |
| G-ECST-35/14 | 14~30 | 229~280 | Black |
| G-ECST-40/17 | 17.5~33 | 152~457 | Black |
| G-ECST-53/25 | 25~46 | 152~457 | Black |
| G-ECST-70/32 | 32~63 | 152~457 | Black |
| G-ECST-104/43 | 43~94 | 229 | Black |
| G-ECST-125/46 | 46~114 | 229 | Black |
| G-ECST-150/55 | 55-135 | 457 | Black |
FAQ
Q: If you have Rohs,UL, REACH certificate?
A:Yes,except these,if you also need other certificates,we also can help to apply.
Q: You are factory or trading company?
A: we are factory, Our Boss invest into 2 factory in total, One is Insulation Material Factory, One is Machinery Factory.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping.
Q: What about after service?
A: We can offer 12 months free warranty.
Q: What Products can you make?
A: We can make Insulation Materials such as Cold Shrink tube, Braided Sleeve, Dual wall Shrink Tube, Special Shrink Tube, Fiber Glass Sleeve, Medium&Heavy Wall Shrink Tube, Skidproof Shrink Tube, Thin Wall Shrink Tube, Vonnector Tube and etc, If you need any insulation materials, Pls just contact us. We will sending our detail specs and quote to you accordingly.
Q: How to reach our factory?
A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
