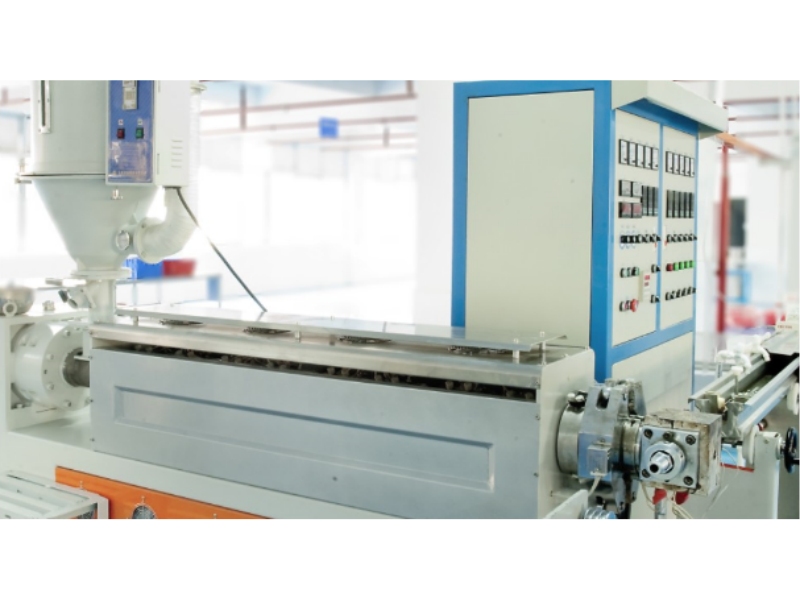

Core Wire Extrusion Machine Line core wire extrusion machine factory

Core Wire Extrusion Machine Line core wire extrusion machine factory

The Core wire Extrusion Machine line is used in conductor single layer extrusion, foam-skin chemical double layers extrusion, single layer+pours the strip extrusion.

Item No. :
WH-C001
Order MOQ :
1 SET
Payment term :
T/T,L/C
Product Origin :
Dongguan China
Color option :
Blue, grey, white...
Shipping Term :
FOB,CIF
Lead Time :
60 Days

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Features:

Used abroad

The core wire extrusion machine line is used in conductor single layer extrusion/ pours the strip extrusion.

High output

Specialized design to make the screw more useful, none viscose, not escape the chromium and so on.

High-quality

The production of extrusion Concentricity up to 93-97%, out DIA. Tolerance: ± 0.005.

Temperature controlled

Used SCR power control machine, with the import temperature control, the temperature of machine body controlled in ± 1℃.

Control easy

Human screen touch, operation will be more easier, more, and more convenient.

Save place

Cange design the tradition lay out

Specification

Machine model	Φ30	Φ40	Φ50	Φ60
Purpose	Used in conductor single layer extrusion, Foam-Skin chemical double layers extrusion, single layer+ pours the strip extrusion
Core Specification	AWG36-AWG30	AWG32-AWG28	AWG30-AWG26	AWG28-AWG20
Extrusion material	HDPES Foam-PE. PP、PU、PVC、SR-PVC
Screw parameter	L/D ratio compression ratio:2.7-3.2 screw material: SACM vacuum heat treatment
Temperature group (Body+Head)	3+2	3+2	3+2	4+2
Heating rate	6KW	8KW	11KW	15KW
Power of main machine	7.5HP	10HP	15HP	20HP
The MAX output	30KG/H	45KG/H	60KG/H	85KG/H
MAX production speed	300M/MIN	400M/MIN	600M/MIN	800M/MIN

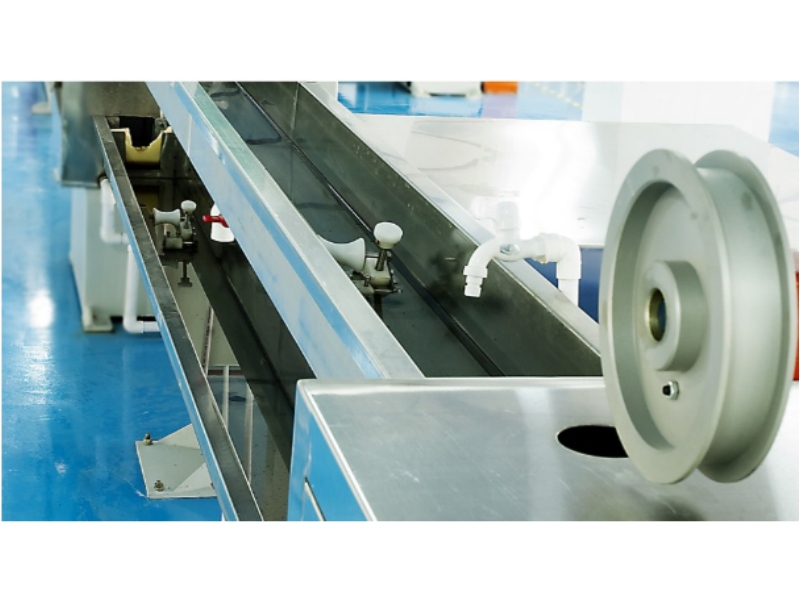

Cooling station	Extension type cooling station/constant temperature cooling station, heating power 9KW, emigration quantity 500,length1.7M, with double class type dry water machine
U type cooling length	6M	8M	8M	8M
Accumulate parameter	Φ120 ~ 180 accumul wheel,fix wheel 10pcs+moving wheel , standard/inclined accuulate shift,length 9M accumulate quantity 200M
Traction power	3HP	3HP	3HP	5HP
Pay-off type	Pay-off/none shaft power take-up, Oder protection, used in 300-500 shaft
Take-up type	Double shaft take-off,3HP motor with frequency converter adjust speed, could be single/linkage running, machine stop with the preset meter over, suitable for 400-500 shaft

FAQ

Q: If you will send engineercoming to our factory to install and make training for worker?

A:Yes, every set of machine, we will send professional engineer to your factory and help installation and making training for you.

Q: If you have CE,SGS,ISO certificate?

A:Yes,except these,if you also need other certificates,we also can help to apply.

Q: If we buy your machines, can you offer us wear - out spare parts?

A: Yes, we provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

Q: The voltage, if you can design Machines according to our request?

A: Yes. We can exactly customised the machine according to Customers' request specially.

Q: You are factory or trading company?

A: we are factory, we are engaged in this business for 20 years, we also have our oversea sales team for better service for our customers.

Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q: What is the payment term?

A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: What about after service?

A: We can offer 12 months free warranty since the machinery arrived at your factory. We also offer spare parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: What Machines can you make? Why we did not see all machine pictures?

A: We can make machines for all kinds of Wire and cables making machines, we can help to settle down whole production line for new factories. Because Machines is not small product and we did not have photos for all of our products which already settled down in our customers' workshop.

ISo if you are looking for any machines related to making wires and cables, just contact us. We will sending our detail specs and quote to you accordingly.

Q: How to reach our factory?

A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
