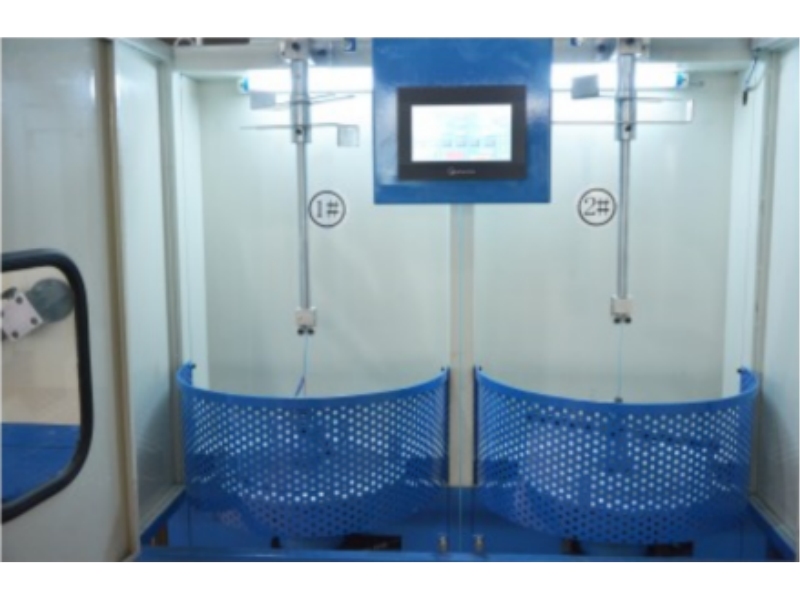

Vertical Single Double Layers Wrapping Machine/Vertical cable wrapping machine
The Vertical Single Double Layers Wrapping Machine is suitable for HDMI, Display port, Infiniband, SATA, mica wire belt continuous double(or single).
Item No. :
WH-W002Order MOQ :
1 SETPayment term :
T/T,L/CProduct Origin :
Dongguan ChinaColor option :
Blue, green, white...Shipping Term :
FOB, CIFLead Time :
30 DaysFeatures
Specification
|
Machine model |
Φ500 Numerical control type double layer/Single vetical taping machine |
|
Core specification |
AWG32-AWG20 |
|
Taping material |
Aluminum foil tape, cotton paper tape, transparent tape, mica tape, teflon tape |
|
Max.rpm |
MAX2000rpm / MAX28m/min |
|
Power |
Adjust the speed by 1 HP motor drievers, taping drun and directs motor linkage |
|
Taping tension |
Taping tension keep constant from begin to end |
|
Take-up tension |
Take-up tension keep constant from begin to end |
|
Heat oven |
Mobile telescopic hot oven, RKC temperature control, temperature tolerance: ± 1 °C |
|
Pay-off type |
Axle take-up, wire no push / pull injury qualifying process, row width and row spacing is set according to the specification of wire of arbitrary |
|
Shaft of pay-off |
Φ300-Φ500 general shaft |
|
Shaft of take-up |
Φ400-Φ630 general shaft |
|
Size of overall |
4150x1400x1900mm |
|
Weight of overall |
2T |
FAQ
Q: If you will send engineercoming to our factory to install and make training for worker?
A:Yes, every set of machine, we will send professional engineer to your factory and help installation and making training for you.
Q: If you have CE,SGS,ISO certificate?
A:Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear - out spare parts?
A: Yes, we provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: The voltage, if you can design Machines according to our request?
A: Yes. We can exactly customised the machine according to Customers' request specially.
Q: You are factory or trading company?
A: we are factory, we are engaged in this business for 20 years, we also have our oversea sales team for better service for our customers.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: What about after service?
A: We can offer 12 months free warranty since the machinery arrived at your factory. We also offer spare parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: What Machines can you make? Why we did not see all machine pictures?
A: We can make machines for all kinds of Wire and cables making machines, we can help to settle down whole production line for new factories. Because Machines is not small product and we did not have photos for all of our products which already settled down in our customers' workshop.
ISo if you are looking for any machines related to making wires and cables, just contact us. We will sending our detail specs and quote to you accordingly.
Q: How to reach our factory?
A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
