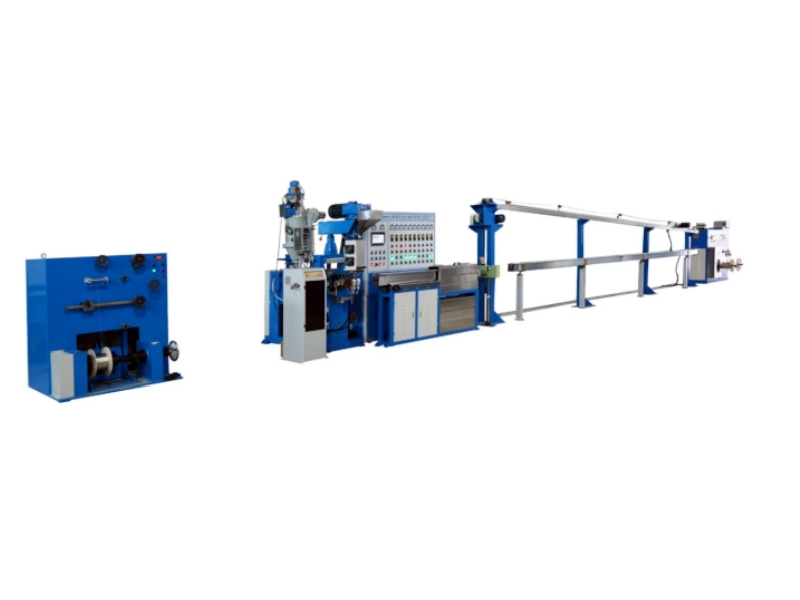

Chemical Foaming Extrusion Line Wire and cable extrusion machine in china
The Wire Extrusion Machine is suitable for chemical foaming double layer insulation extrusion and Conductor single layer extrusion.
Item No. :
WH-E001Order MOQ :
1 SETPayment term :
T/T, Cash, L/CProduct Origin :
ChinaColor option :
Blue, white, green...Shipping Term :
Shenzhen YantianLead Time :
60 days
Features
Used abroad
The chemical foaming extrusion machine line used in conductor single layer extrusion/Foam-Skin insulation extrusion/single layer + pours the strip extrusion.
High output
Specialized design to make the screw more useful, none viscose, not escape the chromium and so on.
High-quality
The production of extrusion Concentricity up to 93-97%, out DIA. Tolerance: ± 0.005,foam skin ± 0.008, capacitance: ±0.5
Temperature controlled
Used SCR power control machine, with the import temperature control, the temperature of machine body controlled in ±1℃
Control easy
Human screen touch, operation will be more easier, more, and more convenient.
Save place
Change design the tradition lay out, the total length reduce more than 5m.
Specification
|
Purpose |
Suitable for chemical foaming extrusion/conductor single layer extrusion. |
|||
|
Core wire specification |
AWG36-AWG30 |
AWG32-AWG28 |
AWG30-AWG26 |
AWG28-AWG22 |
|
Extrusion material |
Foam-PEs Foam-PP. HDPE、PU、PVC |
|||
|
Screw parameter |
L/D:28:1 ,C/R: 2.7-3.2, screw material:38CrMoAIA, vacuum malcomising, surface grinded,chrome plated & polished |
|||
|
Color injection extruder power |
3HP |
3HP |
3HP |
5HP |
|
Temperature control zones (for extruder+color infection) |
7+3 |
7+3 |
7+3 |
7+3 |
|
Heating power |
6KW |
8KW |
11KW |
15KW |
|
Main extruder power |
10HP |
15HP |
15HP |
20HP |
|
Capstan power |
3HP |
3HP |
3HP |
3HP |
|
Max output |
25KG/H |
40KG/H |
50KG/H |
60KG/H |
|
Max speed |
400M/MIN |
500M/MIN |
500M/MIN |
500M/MIN |
|
Movable flume |
Movable feedback thermostatic flume, heating power 9KW, amount of movement 500 . total length 1.7M, with double-sections air wiper |
|||
|
U-Type cooling flume length |
10M |
10M |
10M |
10M |
|
Accumulator parameter |
Φ120-180 accumulator wheel,fixed wheel 10 grooves +movable wheel 11 grooves, standard/inclined accumulator, length 9-12M, accumulate quantity 200M |
|||
|
Pay-off type |
Active pay-off without axis,mechanical lever structure,pay-off tension adjusted by moving slider, with tension displayer and wire brake protection, suitable for Φ 300-500 wire bobbin |
|||
|

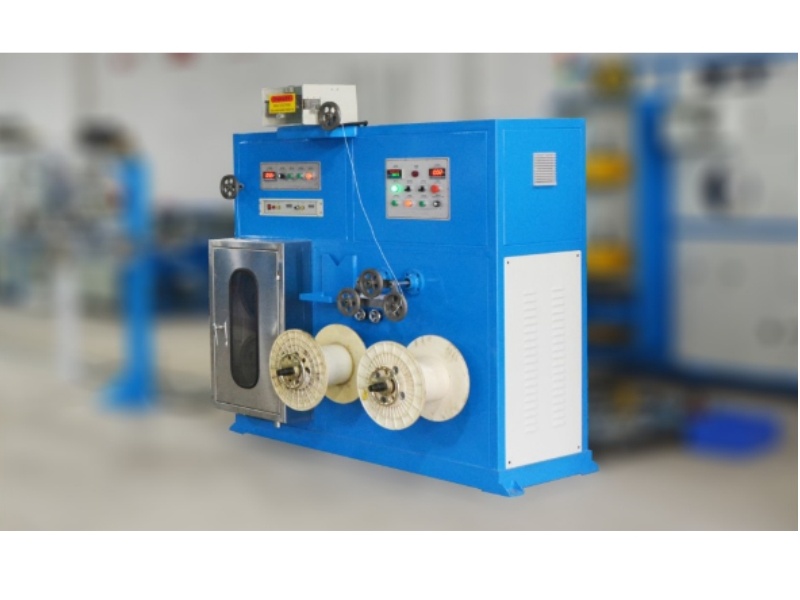

Take-up type |
Double axises take-up. 3HP motor together with frequency converter to adjust speed.single/linkage both available,machine stop when meter reach set value, traversing by polished rod or precision screw, suitable forΦ400-630 wire bobbin |
|||
|
Size (L x W x H)_mm |
20000 X 1500 X 2100 |
20000 X 1600X2100 |
20000 X 1700 X 2100 |
20000 X 1800 X 2100 |
FAQ
Q: If you will send engineercoming to our factory to install and make training for worker?
A:Yes, every set of machine, we will send professional engineer to your factory and help installation and making training for you.
Q: If you have CE,SGS,ISO certificate?
A:Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear - out spare parts?
A: Yes, we provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: The voltage, if you can design Machines according to our request?
A: Yes. We can exactly customised the machine according to Customers' request specially.
Q: You are factory or trading company?
A: we are factory, we are engaged in this business for 20 years, we also have our oversea sales team for better service for our customers.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: What about after service?
A: We can offer 12 months free warranty since the machinery arrived at your factory. We also offer spare parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: What Machines can you make? Why we did not see all machine pictures?
A: We can make machines for all kinds of Wire and cables making machines, we can help to settle down whole production line for new factories. Because Machines is not small product and we did not have photos for all of our products which already settled down in our customers' workshop.
ISo if you are looking for any machines related to making wires and cables, just contact us. We will sending our detail specs and quote to you accordingly.
Q: How to reach our factory?
A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
